MH beam lifter gantry crane
Product Category:
Product Description:
Mingdao company has six functional departments, including R&D department, sales&after-sales department, materials supply department, production department, QC department and finance department. There are 16 workshops including electrical, riveting, forging, assembly, heat treatment, machining and maintenance.

Hotline:
Brief Introduction:
The beam lifter is a kind of gantry crane specially designed for bridge construction. The beam lifter is mainly composed of assembled main beams, outriggers, cranes, etc. The components are connected by pins and high-strength bolts, which are easy to disassemble and transport; compared with ordinary gantry cranes, the installation is convenient, fast, economical and practical. It is suitable for frequently flowing road and bridge construction units.
It is equipped with outrigger walking, crane walking and crane lifting equipment, which can realize all-round mechanized action. It is mainly used to lift the prefabricated beam from the beam making platform to the beam storage platform. After the maintenance of the prefabricated beam is completed, it is hoisted from the beam storage platform to the beam transport vehicle. As a lifting device to complete the assembly and disassembly of the bridge erection machine. It is also used to erect dry bridges with low piers
Technical Parameters:
Mechanism |
|
Item |
Unit |
Result |
|
Lifting capacity |
Ton |
1-500ton |
|||
Working grade |
|
A5-A8 |
|||
Span |
M |
5-40m |
|||
Working environment temperature |
°C |
-25~50 |
|||
Travelling mechanism |
Working speed |
M/min |
20-75 |
||
Motor |
Type |
|
YZR160M2 |
||
Power |
Kw |
2*0.8 |
2*1.5 |
||
Rotational speed |
M/min |
1380 |
|||
Lifting mechanism |
Lifting speed |
M/min |
8/0.8(7/0.7) 3.5(3.5/0.35) 8(7) |
||
Lifting height |
H(m) |
6 9 12 18 24 30 |
|||
Travelling speed |
M/min |
20 30 |
|||
Working system |
A5-A8 |
||||
Power source |
380V 3pH 50Hz |
Main Girder/ Beam |
Rigid welded trussed type Module design Travel speed: variable Function: Bearing load
|
|
Ground Beam |
|
Rigid welded trussed type Modular design Function: Push crane run forward or reverse Materials: Q235/345 |
|
|
Rigid welded trussed type Modular design Function:Support the main structure of the crane
Materials: Q235/345 |
Lifting mechanism |
Winch trolley The highest working class in China |
|

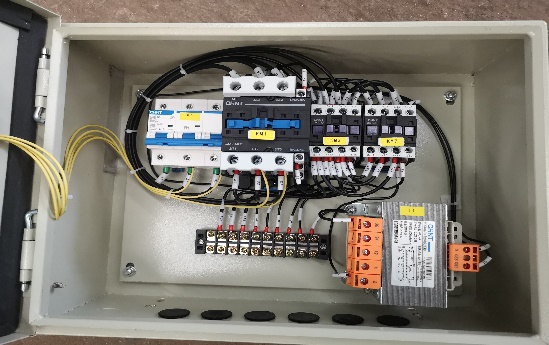

Electric Control box |
|
Circuit breaker/ AC contactor Schneider /Siemens/ABB/DELIXI/ CHINT famous brand |
Operate method |
Radio remote control |
|
Cable reel&cable |
|
Power supply to crane Easy to install Safe & stable |
Operate method |
Cabin Control + Pendant Control+ Radio remote control |
|
Our service:
Pre-Sales Service
1.Inquiry and consulting support* View our Factory
2.Design drawing of CAD
During production period
1. Strict quality control system, supervision the work to ensure the best crane for you.
2. Strict production line, make sure manufacture the goods on time.
3. Send real time production procedure video and pictures for customers
4. Best cooperation forwarder provide the soonest and reliable service for our goods.
After-Sales Service
1.Training how to install the machine, training how to use the machine. Engineers available to service machinery overseas.
2. Installation service
3. Online support* Radio support
4. Telephone support. Engineering service
5. Will provide all technical documents by U flash desk when delivery and soft copy (Installation manual, instruction, electrical drawing, 3D drawing etc)
Mingdao Cranes is the leading manufacturer and service provider of lifting and Materials handling products. Dedicated to the research and development of lifting and Materials handling technologies, Mingdao Cranes can provide customers a wide range of lifting products with compact design, low headroom, good safety, high performance and efficient operation. We are committed to help our customers cut down factory investment, improve production efficiency, reduce daily maintenance, economize energy consumption and achieve best Return on Investment.
Welcome contact with us with the following specifications:
1.Lift capacity?
2.Lift height?
3.The span?
4.Local power supply?
5.Crane travel length?
6.What materials will the crane lift?
Contact me:
Ms. Wendy
Wechat/Whatsapp:0086-15953837722
Email: sales66@mdcranes.com
