MU container gantry crane
Product Category:
Product Description:
Mingdao company has six functional departments, including R&D department, sales&after-sales department, materials supply department, production department, QC department and finance department. There are 16 workshops including electrical, riveting, forging, assembly, heat treatment, machining and maintenance.

Hotline:
Brief Introduction:
This MU model container gantry crane is designed specially used for railway logistic park or offshore harbour logistic park. The shipbuilding gantry crane with vast lifting capacity, big span, multifunction, high efficiency specialized in dock (or slipway) to fragment transport and butt joint.
Technical Parameters:
Capacity(t) |
5t / 10t |
20t |
30t |
40t |
50t |
Span(m) |
10m---50m |
||||
Lifting height(m) |
6m---30m |
||||
Control mode |
Cabin control |
||||
Lifting speed(m/min) |
6,7,8,9,10,12 |
1,2.4,3,4,5,6 |
|||
Travelling speed(m/min) |
20,30,45,54,60,75(can add Inverter) |
||||
Service class(work grade) |
a) M5: used in places of medium service, such as machine and assembly shops b) M6: used in places of frequent working such as metallurgy and casting shops |
||||
Cantalever |
One side or two side cantilever |
||||
Supply power(three phase power) |
380V 50HZ 3Phase (according to user require) |
||||
Hoist type |
Electric trolley,single or double speed |
||||
Working ambient temperature |
-20 °C~ <55°C. |
||||
Note |
It's not suitable for lifting blazing & melting metal or toxicant as well as explosion-proof or insulating working conditions. |

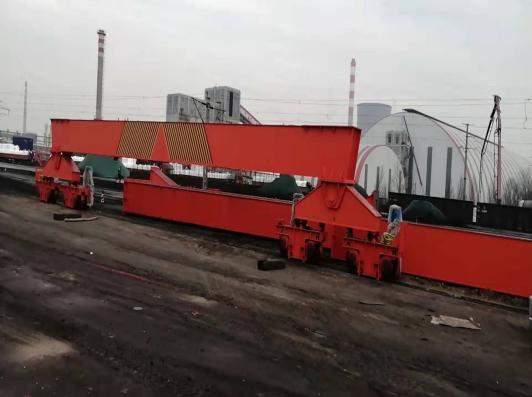

Main Girder/ Beam |
Rigid welded box type Module design Travel speed: variable Function: Bearing load Material: Q235/345 |
|
Ground Beam |
|
Rigid welded box type Modular design Function: Push crane run forward or reverse Materials: Q235/345 |
support leg |
|
Rigid welded box type Modular design Function:Support the main structure of the crane Materials: Q235/345 |
Lifting mechanism |
Winch trolley The highest working class in China |
|
Cable reel&cable |
|
Power supply to crane Easy to install Safe & stable |
Electric Control box |
|
Circuit breaker/ AC contactor Schneider/Siemens/ABB/DELIXI/ CHINT famous brand |

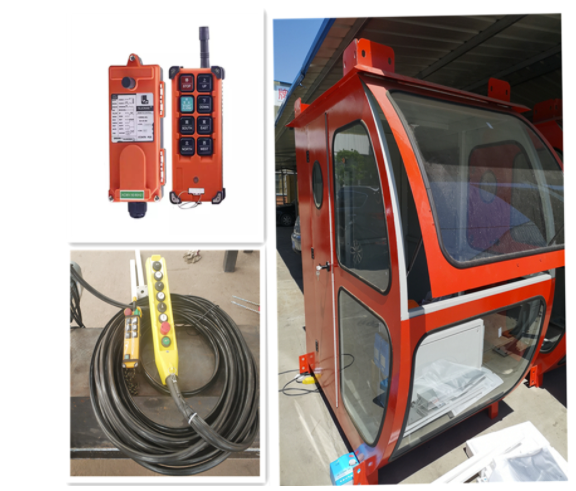

Operate method |
Cabin Control + Pendant Control+ Radio remote control |
|
Main features:
The container gantry crane(shipbuilding gantry crane) has the function of hoisting, air turning and so on. There is two kinds of portal frames like single girder type and double-girder and two kinds of portal frame rigid legs like one pillar type and double-pillar to be choose by users. The upper trolley has double main hook set outside of the girder but it can move horizontal 0 to 2 meters alone or at same time. The lower trolley has main hook and secondary hook set below the main girder center. The upper trolley and lower trolley can through each other to operate. In order to avoid storm attacking, the shipbuilding gantry crane has anti-wind device like rail clamping device, anchor chain and others.
Our service:
Pre-Sales Service
1.Inquiry and consulting support* View our Factory
2.Design drawing of CAD
During production period
1. Strict quality control system, supervision the work to ensure the best crane for you.
2. Strict production line, make sure manufacture the goods on time.
3. Send real time production procedure video and pictures for customers
4. Best cooperation forwarder provide the soonest and reliable service for our goods.
After-Sales Service
1.Training how to install the machine, training how to use the machine. Engineers available to service machinery overseas.
2. Installation service
3. Online support* Radio support
4. Telephone support. Engineering service
5. Will provide all technical documents by U flash desk when delivery and soft copy (Installation manual, instruction, electrical drawing, 3D drawing etc)
Mingdao Cranes is the leading manufacturer and service provider of lifting and Materials handling products. Dedicated to the research and development of lifting and Materials handling technologies, Mingdao Cranes can provide customers a wide range of lifting products with compact design, low headroom, good safety, high performance and efficient operation. We are committed to help our customers cut down factory investment, improve production efficiency, reduce daily maintenance, economize energy consumption and achieve best Return on Investment.
Welcome contact with us with the following specifications:
1.Lift capacity?
2.Lift height?
3.The span?
4.Local power supply?
5.Crane travel length?
6.What materials will the crane lift?
