MZ double girder gantry crane with grab

Product Category:

Gantry crane

Product Description:

Mingdao company has six functional departments, including R&D department, sales&after-sales department, materials supply department, production department, QC department and finance department. There are 16 workshops including electrical, riveting, forging, assembly, heat treatment, machining and maintenance.

Hotline：

86-15953837722

Messages

Brief Introduction:

Double-girder gantry crane with grab bucket is suitable for metallurgy, cement, chemical and other enterprises' warehouses and workshops to carry ore, limestone, mineral powder, coke, coal sand and other bulk materials indoors or in the open air and between fixed spans. This product is composed of five parts: box-shaped bridge frame, trolley running mechanism, trolley, grab bucket, and electrical equipment. All mechanisms are operated in the control room. The pick-up device is a four-rope grab bucket with two drums, which is simple in structure and reliable in operation.

Technical Parameters:

Mechanism		Item	Unit	Result
Lifting capacity			Ton	1-500ton
Working grade				A5-A8
Span			M	5-40m
Working environment temperature			°C	-25~50
Travelling mechanism	Working speed		M/min	20-75
	Motor	Type		YZR160M2
		Power	Kw	2*0.8	2*1.5
		Rotational speed	M/min	1380
Lifting mechanism	Lifting speed		M/min	8/0.8(7/0.7) 3.5(3.5/0.35) 8(7)
	Lifting height		H(m)	6 9 12 18 24 30
	Travelling speed		M/min	20 30
Working system			A5-A8
Power source			380V 3pH 50Hz

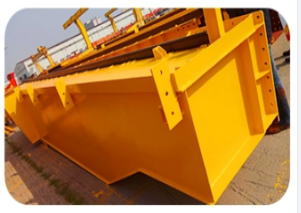

Main Girder/ Beam	Rigid welded box type Module design Travel speed: variable Function: Bearing load Material: Q235/345
support leg		Rigid welded box type Modular design Function:Support the main structure of the crane Materials: Q235/345
ground beam		Rigid welded box type Modular design Function: Push crane run forward or reverse Materials: Q235/345
Lifting mechanism	Winch trolley The highest working class in China
Electric Control box		Circuit breaker/ AC contactor Schneider /Siemens/ABB/DELIXI/ CHINT famous brand
Operate method	Pendant Control+ Radio remote control

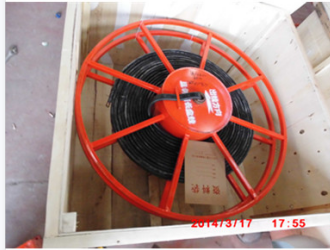

Cable reel&cable		Power supply to crane Easy to install Safe & stable
cabin room	From this crane cab, the crane operators can perform real-time monitoring of the operating status associated with the crane, lifting hook and lifted goods.
Grab		Materials: Q235/345

Our service:

Pre-Sales Service

1.Inquiry and consulting support* View our Factory

2.Design drawing of CAD

During production period

1. Strict quality control system, supervision the work to ensure the best crane for you.

2. Strict production line, make sure manufacture the goods on time.

3. Send real time production procedure video and pictures for customers

4. Best cooperation forwarder provide the soonest and reliable service for our goods.

After-Sales Service

1.Training how to install the machine, training how to use the machine. Engineers available to service machinery overseas.

2. Installation service

3. Online support* Radio support

4. Telephone support. Engineering service

5. Will provide all technical documents by U flash desk when delivery and soft copy (Installation manual, instruction, electrical drawing, 3D drawing etc)

Mingdao Cranes is the leading manufacturer and service provider of lifting and Materials handling products. Dedicated to the research and development of lifting and Materials handling technologies, Mingdao Cranes can provide customers a wide range of lifting products with compact design, low headroom, good safety, high performance and efficient operation. We are committed to help our customers cut down factory investment, improve production efficiency, reduce daily maintenance, economize energy consumption and achieve best Return on Investment.

Welcome contact with us with the following specifications:

1.Lift capacity?

2.Lift height?

3.The span?

4.Local power supply?

5.Crane travel length?

6.What materials will the crane lift?
