Mobile Electric Self-Propelled Hydraulic Lifting Equipment Scissor Lift
Product Category:
Product Description:
Mingdao company has six functional departments, including R&D department, sales&after-sales department, materials supply department, production department, QC department and finance department. There are 16 workshops including electrical, riveting, forging, assembly, heat treatment, machining and maintenance.

Hotline:
Mobile scissor lift is equipped with four wheels that can be pulled by two or three people. It can also be trailed by car with traction and can be moved easily. This series of lift platform is widely used in government institutes, power establishment, road administration, advertisement, telecommunication, transportation, docks, airports, factories, etc. for cleaning and repairing. Mobile scissor lift is the ideal equipment for improving work efficiency and it could help you make aerial work more safe and convenient. There are various kinds of models in order to meet different needs, such as the one with electric walking assistant handle, self-propelled and truck-mounted.
Scissor Aerial Work Platform Features: lifting mechanism of high-strength
Manganese steel rectangular tube production. With a safety device to prevent
Overloading of the lift. Provided to prevent hydraulic line rupture safety
Protection valve. Emergency lowering device in case of a power outage.
Product parameters
Model |
SDMD-6A |
SDMD-6 |
SDMD-8A |
SDMD-8 |
SDMD-10 |
SDMD-12 |
Max working height |
8.00m |
8.00m |
10.00m |
10.00m |
12.00m |
13.80m |
Max lift height |
6.00m |
6.00m |
8.00m |
8.00m |
10.00m |
11.80m |
Load capacity |
380kg |
550kg |
230kg |
450kg |
320kg |
320kg |
Load capacity of extended platform |
113kg |
113kg |
113kg |
113kg |
113kg |
113kg |
Work platform size (length*width*height) |
2260*810* 1100mm |
2260*1130*1100mm |
2260*810* 1100mm |
2260*1130*1100mm |
2260*1130*1100mm |
2260*1130*1100mm |
Overall dimensions (fence not folding) |
2475*810* 2158mm |
2475*1150*2158mm |
2475*810* 2286mm |
2475*1150*2286mm |
2475*1150*2414mm |
2475*1150*2542mm |
Overall dimensions (fence folding) |
2475*810* 1708mm |
2475*1150*1708mm |
2475*810*1836mm |
2475*1150*1836mm |
2475*1150*1964mm |
2475*1150*2094mm |
Extended size of platform |
900mm |
900 mm |
900 mm |
900 mm |
900 mm |
900 mm |
Min ground clearance (collapsed state) |
100mm |
100mm |
100mm |
100mm |
100mm |
100mm |
Wheel base |
1890mm |
1890mm |
1890mm |
1890mm |
1890mm |
1890mm |
Min turning radius (inner wheel/outer wheel) |
0/1900mm |
0/2200mm |
0/3100mm |
0/2200mm |
0/2200mm |
0/2200mm |
Lift /drive motor |
24V/4.5KW |
24V/4.5KW |
24V/4.5KW |
24V/4.5KW |
24V/4.5KW |
24V/4.5KW |
Up/down speed |
3-5m/min |
3-5m/min |
3-5m/min |
3-5m/min |
3-5m/min |
3-5m/min |
Travel speed (collapsed state) |
3.5km/h |
3.5km/h |
3.5km/h |
3.5km/h |
3.5km/h |
3.5km/h |
Travel speed |
0.8km/h |
0.8km/h |
0.8km/h |
0.8km/h |
0.8km/h |
0.8km/h |
Battery |
4*6V/225Ah |
4*6V/225Ah |
4*6V/225Ah |
4*6V/225Ah |
4*6V/225Ah |
4*6V/225Ah |
Charger |
24V/30A |
24V/30A |
24V/30A |
24V/30A |
24V/30A |
24V/30A |
Max grade ability |
25% |
25% |
25% |
25% |
25% |
25% |
Max working angle |
1.5°/3° |
1.5°/3° |
1.5°/3° |
1.5°/3° |
1.5°/3° |
1.5°/3° |
Tyre |
φ381*127mm |
φ381*127mm |
φ381*127mm |
φ381*127mm |
φ381*127mm |
φ381*127mm |
Self-weight |
1850kg |
2060kg |
1980kg |
2190kg |
2430kg |
2960kg |

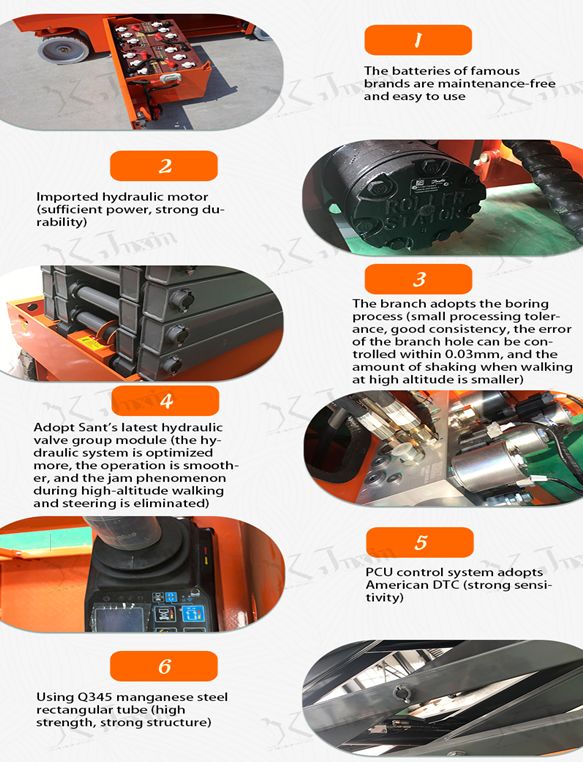

Details Display
Product display
