Single Double Speed Winch Electric Steel Wire Rope Hoist Winch for Cranes

Brief Introduction, CD or MD model electric hoist can be widely used to hoist heavy objects, or installed on the straight or curve I-section steel beam of monorail overhead cranes. They can also be used together with Electric Hoist gantry cranes and jib cranes.

All the above has made the electric hoists common used in industrial and ore enterprises, railway, wharf and warehouses.

CD or MD model monorail wire rope electric hoist is a kind of light-duty lifting equipment with advantages of tight structure,light weight, small volume, wide common use and convenient operation etc.If reducers with hard gear surface are applied,it will have long life and high mechanical efficiency.

CD model electric hoist has one lifting speed. MD model electric hoist has normal lifting speed and slow lifting speed which
makes it lift steadily and accurately.

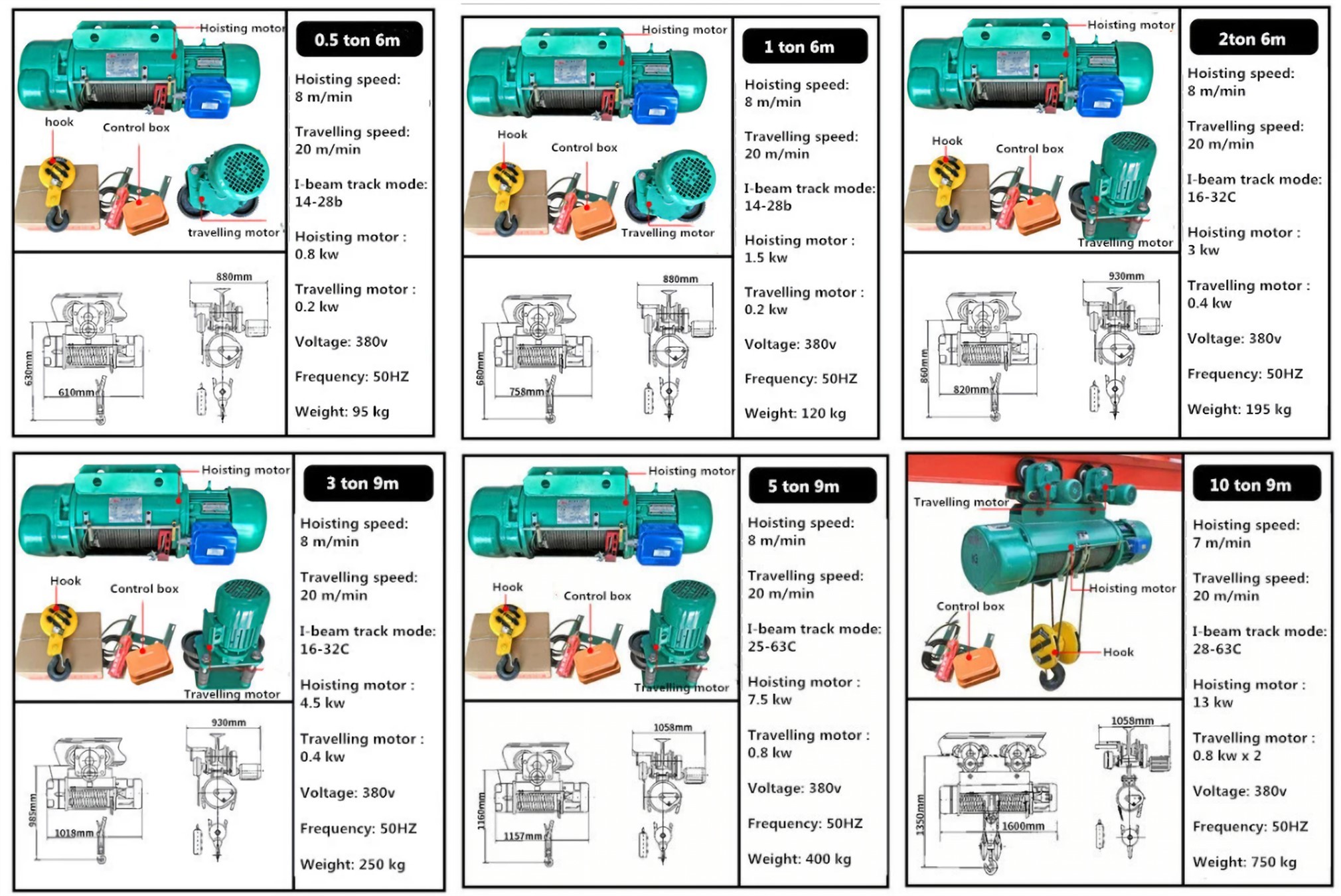

Product display,

Technical Parameters(for reference)

Model	0.25TON		0.5TON	1TON	2TON	3TON	5TON	10TON
Lifting capacity(t)	0.25		0.5	1	2	3	5	10
Lifting height(m)	3-9		6-12	6-30	6-30	6-30	6-30	6-30
Lifting speed m/min	8(8/0.8)		8(8/0.8)	8(8/0.8)	8(8/0.8)	8(8/0.8)	8(8/0.8)	7(7/0.7)
Running speed(m/min)	20(30)
Rope size	6×19-3.6	6×37-4.8-180		6×37-7.4-180	6×37-11-155	6×37-13-170	6×37-15-200	6×37-15-200
Rail beam	16-22b	16-28b		16-28b	20a-32c	20a-32c	25a-63c	28a-63c
Min.radius of ring rail (m)	0.8	1.5		1.5-4	2-4	2-4	2.5-5	3.5-9
Voltage (v)	380	380		380	380	380	380	380
Frequency (hz)	50	50		50	50	50	50	50
Phase	3	3		3	3	3	3	3

1.The reducer

Electric hoist adopts three-stage fixed shaft helical gear transmission mechanism, gear and gear shaft are made of heat-treated alloy, box body and cover are made of high quality cast iron, with strict assembly and good sealing.The reducer is a part of itself, on which loading and unloading are very important.

2.The control box

The wire rope electric hoist adopts the device which can cut off the circuit in case of emergency and has up and down stroke to protect the stop fire limit device.Maintain the safe operation of electric hoist.Electrical components long life, reliable use.

3.The steel wire rope

Gb1102-74 (6 37+) type hoisting wire rope is adopted to ensure its durability.

4. Taper motor

The hoisting motor adopts the tapered rotor braking asynchronous motor with large starting torque, without the need of external brake.The motor load duration is 25%. The motor is insulated with class B or class F, and the motor protection grade is IP44/IP54.

5. Push button switch

Manual operation type light and convenient, there are two ways of rope longitudinal and cordless remote control.

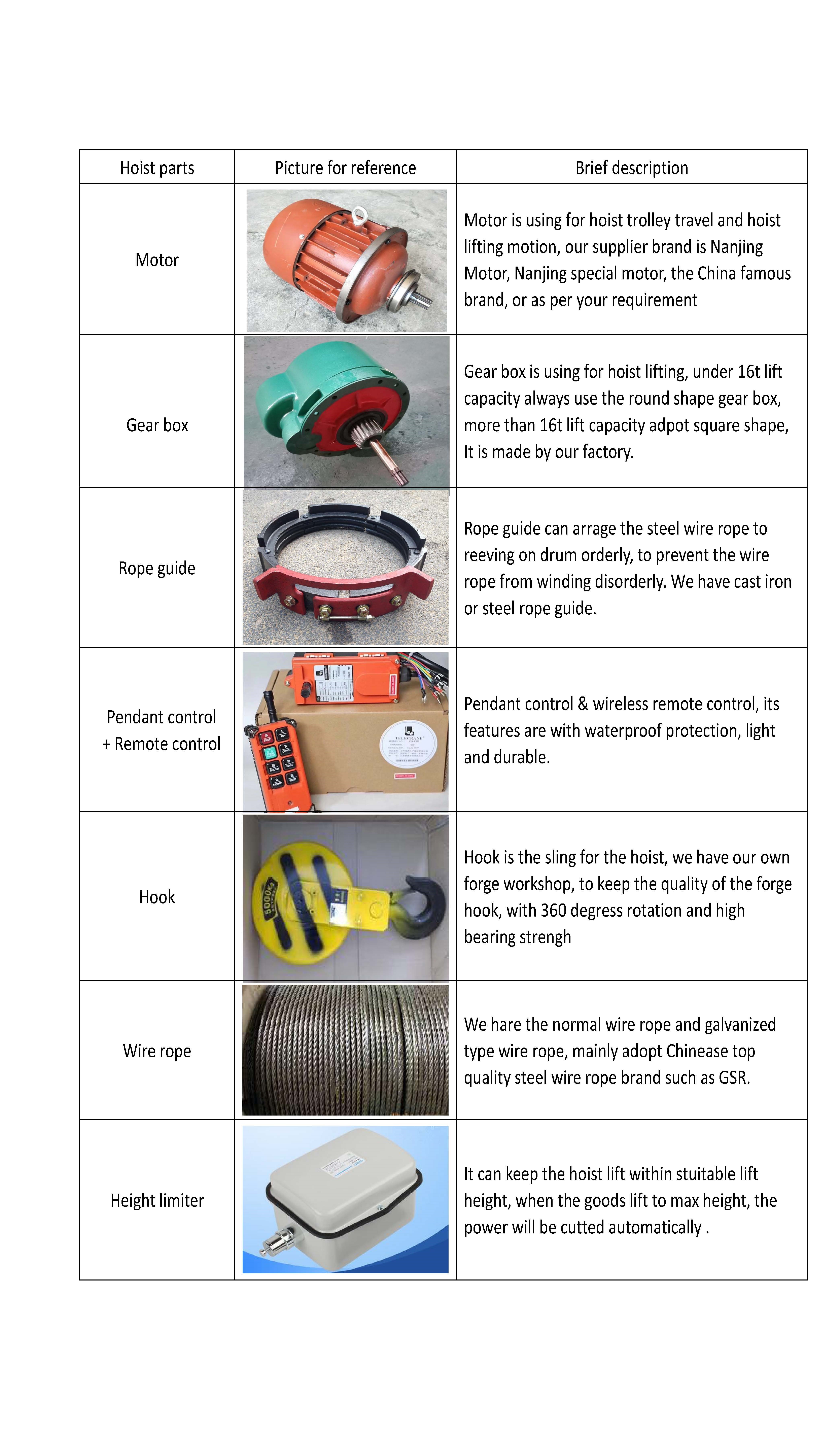

Components details
