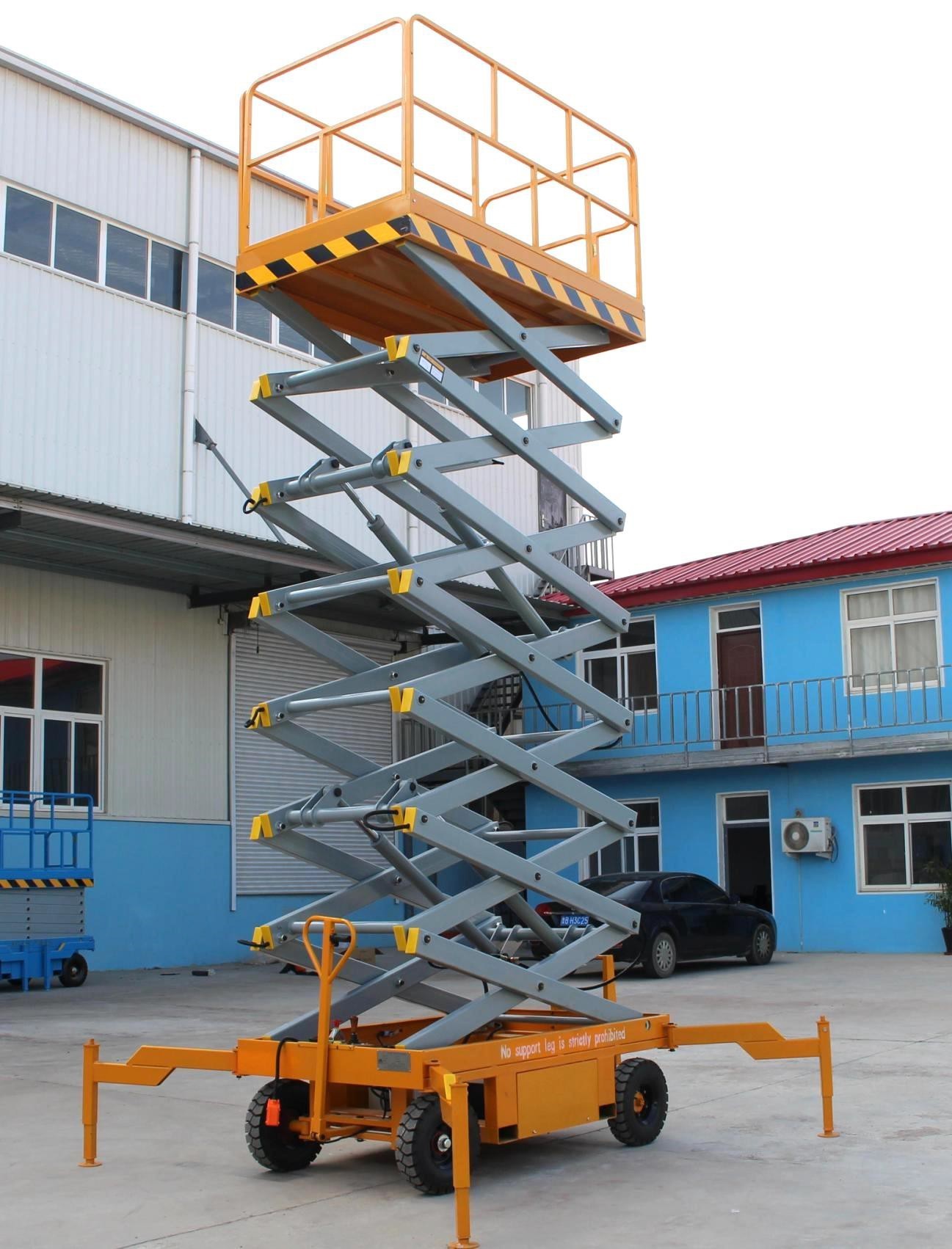

Semi Aeial Work Platform Trailer Mobile Scissor Lift

Product Category:

Hydraulic scissor lift

Product Description:

Mingdao company has six functional departments, including R&D department, sales&after-sales department, materials supply department, production department, QC department and finance department. There are 16 workshops including electrical, riveting, forging, assembly, heat treatment, machining and maintenance.

Hotline：

86-15953837722

Messages

Main features

1. Big load capacity: 300-2000kg (customized)

2.Extendable work platform: size customized

3.Different options of power sources

4.Hydraulic outriggers to level the lift on uneven ground

5.Optional walk speed, max. 40km/h with automobile tires

6.Emergency drop device

7.Pothole protection system

8.Electric auxiliary walking available

9.CE certified

Product displace

Product Parameters

Type	Platform(mm)	Load(kg)	lifted Height(m)	Dimension(mm)	Weight(kg)
SJY0.5-4	2100*800	500	4	22609501100	800
SJY0.5-6	2100*800	500	6	22609501210	850
SJY0.5-7	2100*800	500	7	22609501210	850
SJY0.5-8	2100*900	500	8	226010501330	1050
SJY0.5-9	2100*900	500	9	226010501450	1165
SJY0.5-10	2100*1200	500	10	230013501480	1300
SJY0.3-11	2100*1200	300	11	230013501600	1400
SJY0.5-12	2550*1500	500	12	275016701730	2060
SJY0.5-14	2850*1500	500	14	300016701730	2400
SJY0.3-16	2810*1600	300	16	310018202080	3300
SJY0.3-18	3100*1600	300	18	330018202080	3600
SJY1.0-4	2100*1200	1000	4	226013501100	1250
SJY1.0-6	2100*1200	1000	6	225013501210	1400
SJY1.0-8	2100*1200	1000	8	226013501330	1585
SJY1.0-10	2150*1200	1000	10	230013501750	1700
SJY1.0-12	2550*1500	1000	12	275016701800	2560
SJY1.0-14	2850*1500	1000	14	310017501850	2765
SJY1.5-6	2100*1500	1500	6	226017501530	1780
SJY1.5-8	2100*1500	1500	8	226017001690	2050
SJY1.5-10	2150*1500	1500	10	230017001730	2250
SJY1.5-12	2550*1500	1500	12	279617621850	2900
SJY1.5-14	2850*1600	1500	14	310018501960	3350
SJY2.0-6	2100*1500	2000	6	226017501530	1750
SJY2.0-8	2100*1500	2000	8	225017501690	2050
SJY2.0-10	2150*1500	2000	10	230017501850	2250
SJY2.0-12	2550*1600	2000	12	275018502420	2900
SJY2.0-14	2850*1800	2000	14	310020202420	3900

Details Display

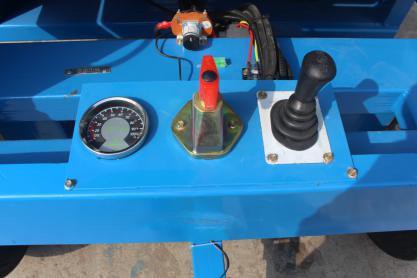

2pcs of Control Panels,One is on the chassis,the other is on the platform,people can control it both on platform and ground.	Driving joystick- battery powere

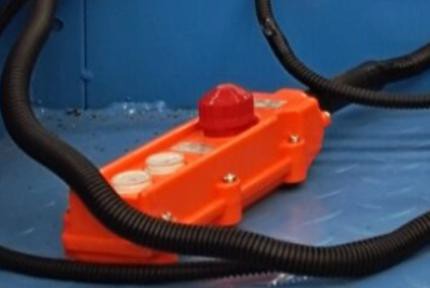

Optional 3,4,5 has Control Panel on the Body	Battery Group

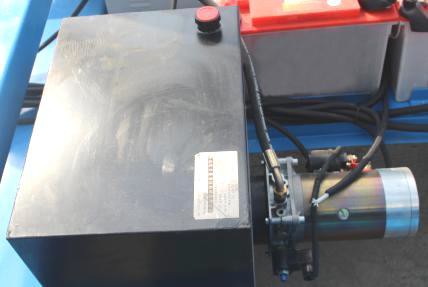

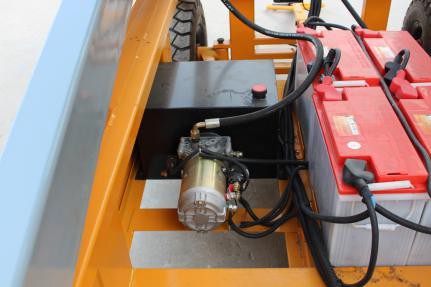

Disassembled guard rails	Hydraulic Pump Station and Electric Motor

Forklift Hole	Travel Switch for Safety Precaution

Our service:

Pre-Sales Service

1.Inquiry and consulting support* View our Factory

2.Design drawing of CAD

During production period

1. Strict quality control system, supervision the work to ensure the best crane for you.

2. Strict production line, make sure manufacture the goods on time.

3. Send real time production procedure video and pictures for customers

4. Best cooperation forwarder provide the soonest and reliable service for our goods.

After-Sales Service

1.Training how to install the machine, training how to use the machine. Engineers available to service machinery overseas.

2. Installation service

3. Online support* Radio support

4. Telephone support. Engineering service

5. Will provide all technical documents by U flash desk when delivery and soft copy (Installation manual, instruction, electrical drawing, 3D drawing etc)

Mingdao Cranes is the leading manufacturer and service provider of lifting and Materials handling products. Dedicated to the research and development of lifting and Materials handling technologies, Mingdao Cranes can provide customers a wide range of lifting products with compact design, low headroom, good safety, high performance and efficient operation. We are committed to help our customers cut down factory investment, improve production efficiency, reduce daily maintenance, economize energy consumption and achieve best Return on Investment.

Welcome contact with us with the following specifications:

1.Lift capacity?

2.Lift height?

3.The span?

4.Local power supply?

5.Crane travel length?

6.What materials will the crane lift?

Contact me:

Ms. Wendy

Wechat/Whatsapp:0086-15953837722

Email: sales66@mdcranes.com

Keywords: Overhead crane | Gantry crane | Jib crane
