LX Electric underslung single girder overhead crane

Product Category:

Overhead crane

Product Description:

Mingdao company has six functional departments, including R&D department, sales&after-sales department, materials supply department, production department, QC department and finance department. There are 16 workshops including electrical, riveting, forging, assembly, heat treatment, machining and maintenance.

Hotline：

86-15953837722

Messages

Brief Introduction:

This under running single girder bridge crane is one kind of light duty crane, it runs under H steel rail.It is designed and made by reasonable structure and higher strength steel .

It is prohibited to use this equipment in the combustible, explosive and corrosive environment.

It uses together with CD1 model MD1 model electric hoist as a complete set, it is a light duty crane with a capacity 0.5 ton ~ 32ton. The span is 7.5m~ 22.5m. Working duty is A3~A5, working temperature is -25-40ºC.

This product is widely used in plants, warehouse, steel plant, steel yard, material stocks etc to lift goods. It is prohibited to use the equipment in the combustible, explosive or corrosive environment (Need explosion proof type for this).

This product has two operational methods, ground (pendent controller /remote controller) or operational cabin room

We accept customized production according to your special requirements.

Technical Parameters:

Main Parameters List
Crane Traveling Mechanism	Traveling Speed(m/min)		20	30	45	60
	Ratio		58.95	39.42	26.51	19.44
	Motor	Type	Cone Squirrel-cage		Cone Squirrel-cage
		Power(kw)	0.82, 1.52, 2.2*2		1.52, 2.12
		Rotary Speed(r/min)	1380		1350
Hoist Lifting Mechanism and Traveling Mechanism	Electric Hoist Model		MD1		CD1
	Lifting Speed(m/min)		8/0.8, 7/0.7, 3.5/0.35		8, 7, 3.5
	Span(m)		7.5-22.5 or assigned
	Lifting Capacity(t)		0.5-32
	Lifting Height(m)		6, 9, 12, 18, 24, 30
	Traveling Speed(m/min)		20, 30
	Motor		Cone Squirrel-cage
Work Duty			Intermediate Jc=25%
Power Supply			380V 50HZ 3P
Wheel Diameter			Φ270, Φ400
Trail Width			37-70

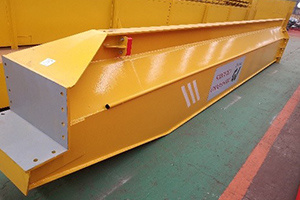

Main Girder/ Beam	Rigid welded box type Module design Travel speed: variable Function: Bearing load Material: Q235/345

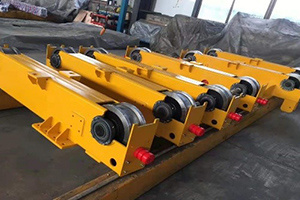

End beam/ Carriage		Rigid welded box type Modular design Function: Push crane run forward or reverse Materials: Q235/345
Electric hoist	Steel Wire Rope Hoist (CD/MD/European Type) L ift Speed: single/dual Travel speed: variable Function: Lift goods
Electric Control box		Circuit breaker/ AC contactor Schneider /Siemens/ABB/DELIXI/ CHINT famous brand
Operate method	Pendant Control+ Radio remote control
Seamless bus bar		Power supply to crane Easy to install Safe & stable Includes, tentioner, hanger, jumper frame

Safety Devices for overhead crane:

To guarantee the normal operation of crane and avoid the personal casualty and mechanical damage, the safety device we provide are not only the electric protective devices or alarm bell but also other equipment as following:

1.Overload Limit Switch

2.Rubber Buffers

3.Electric Protective Devices

4.Emergency Stop System

5.Voltage Lower Protection Function

6.Current Overload Protection System

7.Rail Anchoring

8.Lifting Height Limit Device

Our service:

Pre-Sales Service

1.Inquiry and consulting support* View our Factory

2.Design drawing of CAD

During production period

1.Strict quality control system, supervision the work to ensure the best crane for you.

2. Strict production line, make sure manufacture the goods on time.

3. Send real time production procedure video and pictures for customers

4. Best cooperation forwarder provide the soonest and reliable service for our goods.

After-Sales Service

1.Training how to instal the machine, training how to use the machine.* Engineers available to service machinery overseas.

2. Installation service

3. Online support* Radio support

4. Telephone support. Engineering service

5. Will provide all technical documents by U flash desk when delivery and soft copy (Installation manual, instruction, electrical drawing, 3D drawing etc)

Mingdao Cranes is the leading manufacturer and service provider of lifting and Materials handling products. Dedicated to the research and development of lifting and Materials handling technologies, Mingdao Cranes can provide customers a wide range of lifting products with compact design, low headroom, good safety, high performance and efficient operation. We are committed to help our customers cut down factory investment, improve production efficiency, reduce daily maintenance, economize energy consumption and achieve best Return on Investment.

Welcome contact with us with the following specifications:

1.Lift capacity?

2.Lift height?

3.The span?

4.Local power supply?

5.Crane travel length?

6.What materials will the crane lift?
